The Enlight Lead Crystal Batteries are manufactured in modern state of art factory under strict quality control. The Enlight Lead crystal batteries are becoming increasingly popular with various telecom and industrial sectors due to their ability to operate in a wide range (-40 to +65 Deg C) of temperature. The Lead Crystal technology provides robust and reliable batteries.
The Enlight Lead Crystal battery uses a new Elect rolyte which is a non-corrosive SiO2 solution.The first few charge/discharge cycles causes the electrolyte to solidify and form a non-toxic crystalline substance. This results in a safer,high performance and environmentally friendlier battery.
The battery is housed inside a high quality, flame retardant PC-ABS smoulder-free plastic case and cover.
The batteries are compliant with 48cm(19”)or 58cm(23”)and industrial standard racking dimensions.
As these batteries are dry,they can also be mounted on the side with no risk of spill age or loss in their operation life.
The Enlight Lead Crystal batteries can with stand extreme temperatures ranging from -40º C to+65º C. Hence, they out perform any other battery at extreme temperatures as there is no fluid that can freeze and expand causing bending of plates.
The Electrolyte is not affected by internal temperature generated during Charge and Discharge cycles. The battery is manufactured with a high performance terminal seal design. Without a liquid electrolyte, the batteries have absolutely no risk of leakage.
Due to all above properties these batteries are safe to transport.
The Enlight Lead Crystal Batteries emit almost no vapours or gases as compared to other conventional Lead Acid batteries, thus making ventilation of battery chamber easier and less costly.
The Enlight Lead Crystal Batteries are designed to work with a 5% Ripple current.
Approved as non-hazardous cargo for ground, sea and air transportation. Can also be transported with general goods in the same containers with no risk of contamination.
Enlight Lead Crystal Batteries can with stand higher temperature variations as there is no fluid that can freeze and expand causing bending of plates.
Enlight Lead Crystal Batteries contain almost no harmful chemicals or acids making them environmentally friendly.
2 year factory guarantee (Terms & Conditions apply). 3 year guarantee is also available on request.
The Enlight Lead Crystal Batteries will in general have between 600 and 5000 charge discharge cycles, depending on DOD (7 to 12 year battery life). Under similar conditions Lead-acid batteries will have between 10 to 350 charge discharge cycles (2 to 3 year battery life).
Therefore the Enlight lead crystal battery will have an expected useful life of (at least) more than double that of the life of a lead-acid battery.
The Enlight Lead Crystal Batteries have a very slow self discharge rate. The battery should be fully charged before being stored.
The Enlight Lead Crystal Battery can be stored for 2 years without additional top-up charging. Hence there is no need to charge batteries in stock every few months.
Enlight Lead Crystal battery technology allows for a high-rate discharge of up to10C. Lead-Acid batteries only work at a discharge rate of up to 3C.
The Enlight Lead Crystal Battery has a faster charge time, The charging can be completed with in half the time (2X faster) as compared to that of lead acid batteries. This simplifies battery maintenance dramatically and saves on any extra energy required for Hybrid systems and Generators.
The Enlight Lead Crystal battery can be discharged to 100% capacity / 0.0 Volt – and then restore to full rated capacity.
The Lead-acid batteries can never be restored and have to be discarded after such discharge.
This effectively increases Enlight Lead Crystal usable battery capacity by almost 25%.
The Enlight Lead crystal batteries can function in temperature ranges of-40º C to +65º C
The Enlight Lead Crystal battery delivers from 45% to 85% of its rated capacity at - 40º C to - 10º C, where as the Lead-acid batteries loose their discharge ability under sub-zero conditions.
The Enlight Lead crystal batteries use new materials, processes and formulas.
The Enlight Lead Crystal Batteries do not discharge any harmful mist or gaseous emission as the basic electrolyte is neutral, non-corrosive. Therefore the Enlight Lead crystal batteries do not cause pollution - in line with ever increasing environmental protection requirements.
The Enlight Lead Crystal batteries are classified as non-hazardous devices and are safe to transport by land, sea and air - The battery has a Non Corrosive electrolyte in a Dry state.
Where as the Lead-acid batteries can not be transported by air.
The Enlight Lead Crystal batteries provide a very cost-effective energy storage solution. They perform better and last longer than the Lead Acid batteries.
The Enlight Lead Crystal batteries reduce energy costs and environmental impact.
For the Off-Grid Sites, the use of Enlight Lead Crystal batteries in a hybrid solution reduces fuel consumption, improves performance and lowers truck rolls, therefore decreasing operating expenses.
The Enlight Lead Crystal battery can frequently be discharged by 100%, and can be recharged with no special charging processes and with no risk to battery life.
When over discharged, the Enlight Lead Crystal battery will recover to normal.
The Enlight Lead Crystal batteries recharge up to 2 times faster than competitive products.
The Enlight Lead Crystal batteries have no risk of thermal runaway.
The Enlight Lead Cystal Batteries can Operates in -40 to +650 C temperatures and stringent environmental conditions without loss of performance.
The Enlight Lead Cystal Batteries have longer life time than the other competitive products.
The Enlight Lead Cystal Batteries lower operating costs and have Improved service quality.
The Enlight Lead Cystal Batteries reduces your carbon footprint and support hybrid power sources and systems.
| Sr. | Catalogue Reference | Voltage (V) | 10hr Capacity | Dimensions in mm (±2) | Standard Terminal | Weight/Kg | Download | |||
|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||||

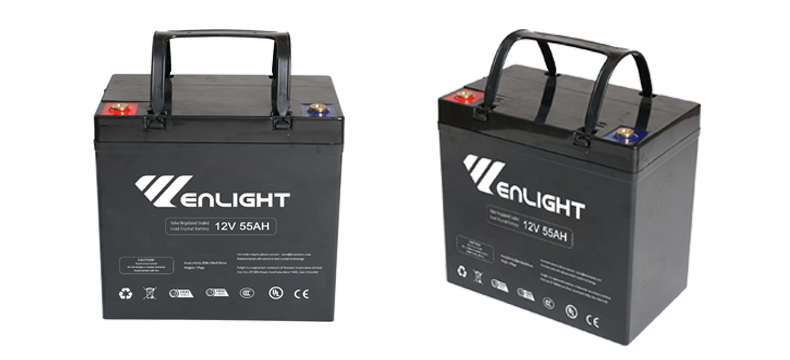

| 1 | FT12V-55 | 12 | 55 | 277 | 106 | 223 | 228 | F9 | 16.8 | |
| 2 | FT12V -90 | 12 | 95 | 390 | 108 | 286 | 286 | F9 | 34.5 | |
| 3 | FT12V -100 | 12 | 100 | 560 | 125 | 228 | 228 | F8 | 34.5 | |
| 4 | FT12V -170 | 12 | 170 | 546 | 125 | 320 | 320 | F8 | 50.0 | |
| Sr. | Catalogue Reference | Voltage (V) | 10hr Capacity | Dimensions in mm (±2) | Standard Terminal | Weight/Kg | Download | |||
|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||||

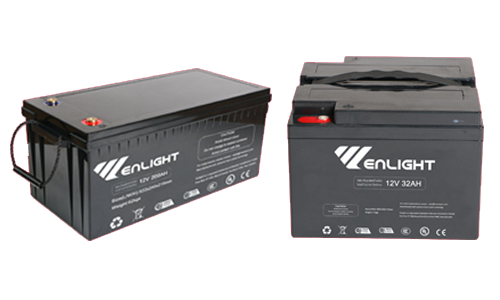

| 1 | CJ12V-4AH | 12 | 4 | 90 | 70 | 101 | 106 | F1 | 1.6 | |
| 2 | CJ12V-7.2AH | 12 | 7.5 | 151 | 65 | 94 | 102 | F2 | 2.25 | |
| 3 | CJ12V-8.5AH | 12 | 8.5 | 151 | 65 | 94 | 102 | F2 | 2.55 | |
| 4 | CJ12V-10AH | 12 | 10 | 151 | 99 | 94 | 100 | F5 | 3.5 | |
| 5 | CJ12V-12AH | 12 | 12 | 151 | 99 | 94 | 100 | F5 | 4.15 | |
| 6 | CJ12V-14AH | 12 | 14 | 151 | 99 | 98 | 102 | F5 | 4.35 | |
| 7 | CJ12V-20AH | 12 | 20 | 181 | 76 | 167 | 167 | F6 | 5.9 | |
| 8 | CJ12V-22AH | 12 | 22 | 186 | 76 | 167 | 170 | F6 | 6.9 | |
| 9 | CJ12V-24AH | 12 | 24 | 175 | 166 | 125 | 125 | F6 | 7.8 | |
| 10 | CJ12V-28AH | 12 | 28 | 175 | 166 | 125 | 125 | F6 | 8.7 | |
| 11 | CJ12V-35AH | 12 | 35 | 222 | 105 | 175 | 175 | F6 | 11 | |
| 12 | CJ12V-40AH | 12 | 40 | 196 | 166 | 176 | 176 | F3 | 13 | |
| 13 | CJ12V-45AH | 12 | 45 | 222 | 120 | 175 | 175 | F7 | 12.5 | |
| 14 | CJ12V-55AH | 12 | 55 | 229 | 138 | 210 | 215 | F3 | 16.9 | |
| 15 | CJ12V-65AH | 12 | 65 | 350 | 166 | 175 | 175 | F4 | 21 | |
| 16 | CJ12V-70AH | 12 | 70 | 260 | 169 | 216 | 220 | F3 | 22.5 | |
| 17 | CJ12V-90AH | 12 | 90 | 306 | 174 | 206 | 240 | F3 | 28 | |
| 18 | CJ12V-100AH | 12 | 100 | 327 | 172 | 206 | 210 | F3 | 31.5 | |
| 19 | CJ12V-120AH | 12 | 120 | 408 | 174 | 211 | 234 | F4 | 36.5 | |
| 20 | CJ12V-160AH | 12 | 160 | 532 | 207 | 215 | 220 | F3 | 50 | |
| 21 | CJ12V-180AH | 12 | 180 | 522 | 240 | 219 | 224 | F4 | 60 | |
| 22 | CJ12V-200AH | 12 | 200 | 522 | 240 | 219 | 224 | F4 | 62 | |
| 23 | CJ12V-230AH | 12 | 230 | 520 | 269 | 220 | 225 | F4 | 70 | |
| Sr. | Catalogue Reference | Voltage (V) | 10hr Capacity | Dimensions in mm (±2) | Standard Terminal | Weight/Kg | Download | |||
|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||||

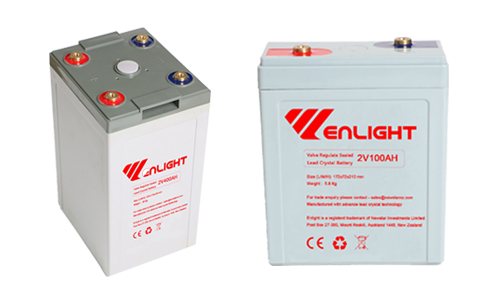

| 1 | TJ2V-100AH | 2 | 100 | 172 | 72 | 205 | 210 | F3 | 5.8 | |
| 2 | TJ2V-150AH | 2 | 150 | 172 | 102 | 205 | 227 | F8 | 8.2 | |
| 3 | TJ2V-200AH | 2 | 200 | 172 | 110 | 330 | 335 | F4 | 13.5 | |
| 4 | TJ2V-300AH | 2 | 300 | 175 | 155 | 330 | 335 | F4 | 22.0 | |
| 5 | TJ2V-400AH | 2 | 400 | 210 | 175 | 330 | 335 | F4 | 28.0 | |
| 6 | TJ2V-500AH | 2 | 500 | 241 | 175 | 330 | 335 | F4 | 31.0 | |
| 7 | TJ2V-600AH | 2 | 600 | 301 | 175 | 330 | 335 | F4 | 38.0 | |
| 8 | TJ2V-800AH | 2 | 800 | 412 | 175 | 330 | 335 | F4 | 55.0 | |
| 9 | TJ2V-1000AH | 2 | 1000 | 480 | 175 | 330 | 335 | F4 | 65.0 | |
| 10 | TJ2V-1500AH | 2 | 1500 | 400 | 351 | 340 | 345 | F4 | 98.5 | |
| 11 | TJ2V-2000AH | 2 | 2000 | 491 | 351 | 342 | 347 | F4 | 125 | |
| 12 | TJ2V-2500AH | 2 | 2500 | 491 | 391 | 342 | 347 | F4 | 141.5 | |
| 13 | TJ2V-3000AH | 2 | 3000 | 712 | 351 | 341 | 346 | F4 | 192.0 | |
| Sr. | Catalogue Reference | Voltage (V) | 10hr Capacity | Dimensions in mm (±2) | Standard Terminal | Weight/Kg | Download | |||
|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | TH | |||||||
| 1 | EJ6V-4AH | 6 | 4 | 70 | 47.5 | 100 | 105 | F1 | 0.7 | |
| 2 | EJ6V-7.2AH | 6 | 7.2 | 151 | 35 | 94 | 102 | F2 | 1.2 | |
| 3 | EJ6V-10AH | 6 | 10 | 151 | 50 | 94 | 100 | F2 | 1.9 | |
| 4 | EJ6V-12AH | 6 | 12 | 151 | 50 | 94 | 100 | F2 | 2.1 | |
| 5 | EJ6V-160AH | 6 | 160 | 298 | 172 | 227 | 230 | F3 | 25.0 | |
| 6 | EJ6V-180AH | 6 | 180 | 306 | 168 | 222 | 225 | F8 | 28.0 | |
| 7 | EJ6V-200AH | 6 | 200 | 323 | 178 | 226 | 230 | F10 | 30.5 | |
